VU120 - Installation

Position dans le conduit

null
1
2
3

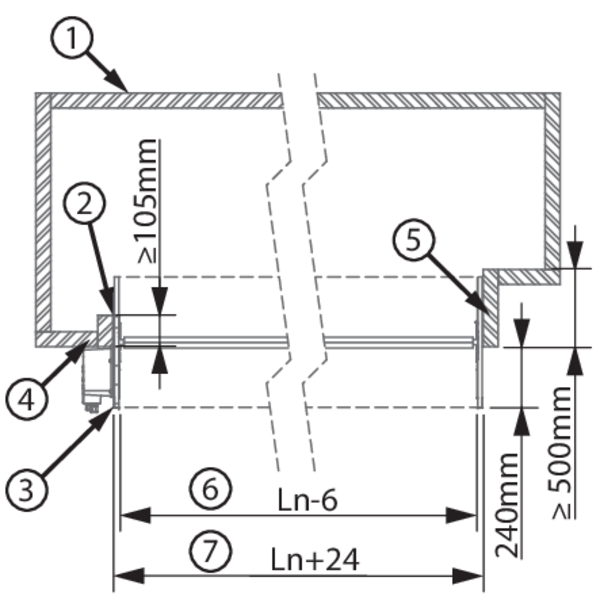

Installation en conduit - coupe transversale

null
1
1. Conduit
2. Calfeutrement
3. Bride PG30
4. Montage sans extension du conduit
5. Montage avec extension du conduit
6. Dimensions intérieures tunnel (Ln-6) x (Hn-6)
7. Dimensions extérieures tunnel (Ln+24) x (Hn+24)

Installation en conduit horizontal ou vertical PROMATECT L500
