SC60-COSMO - Installatie

Plaatsing specifiek voor SC60-COSMO

""
1

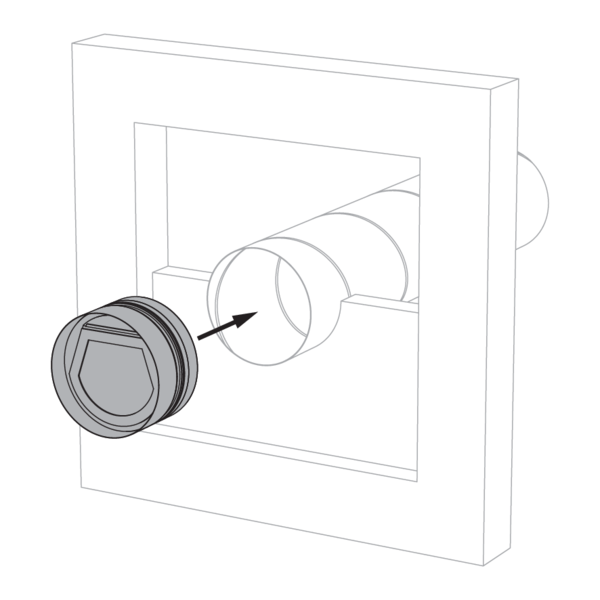

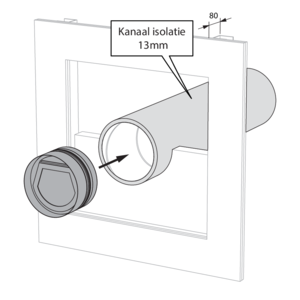

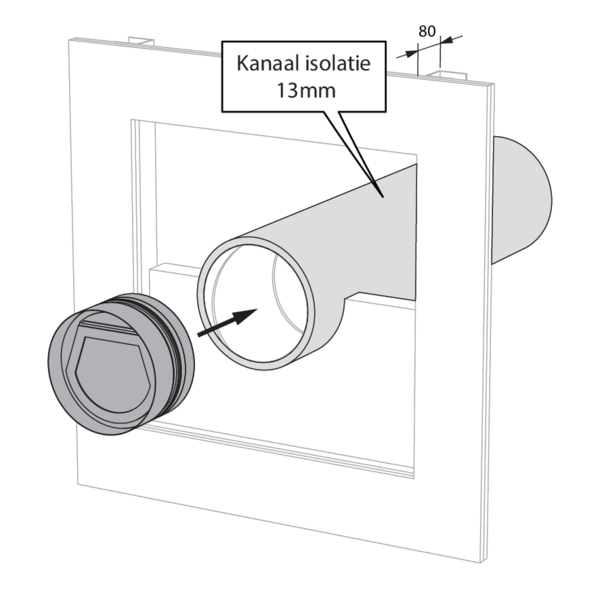

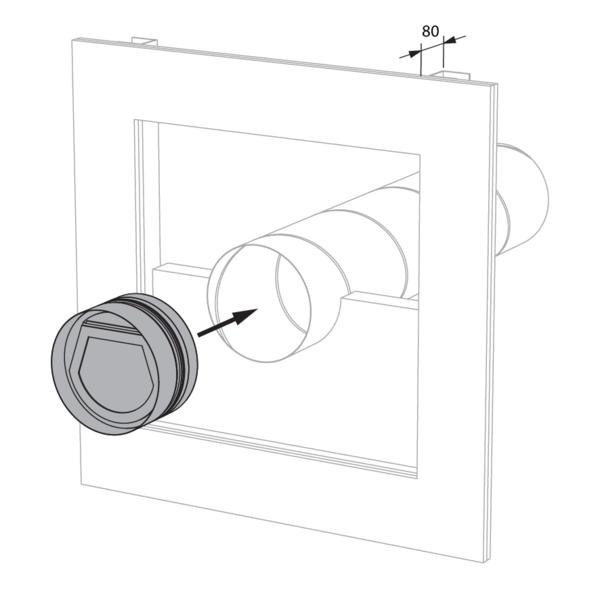

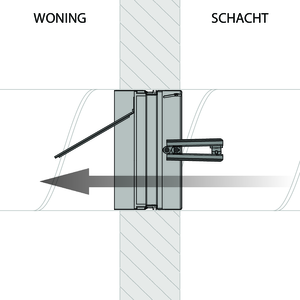

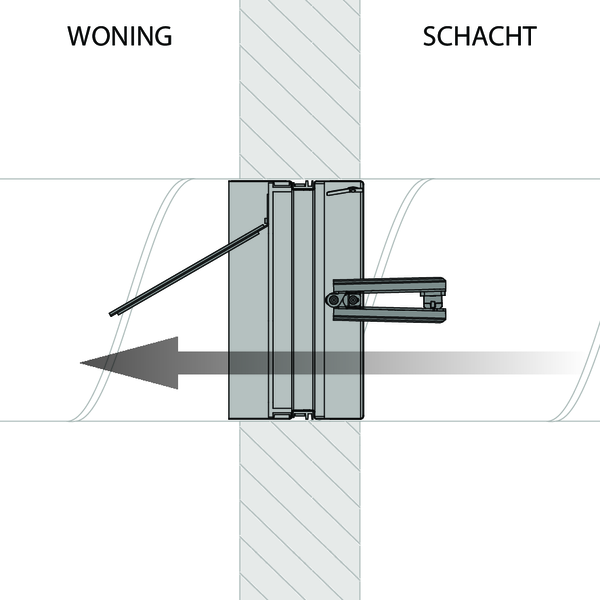

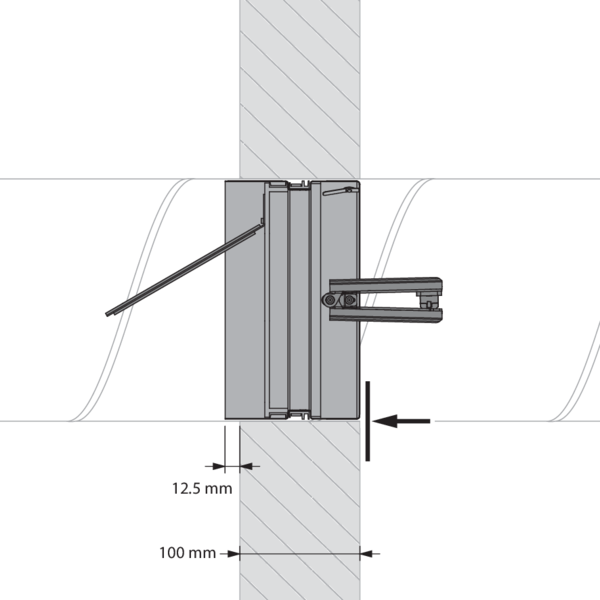

Installatierichting voor toevoer
2

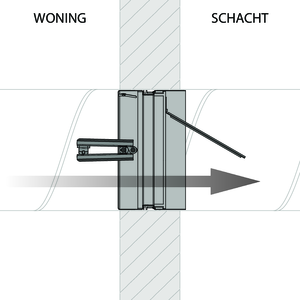

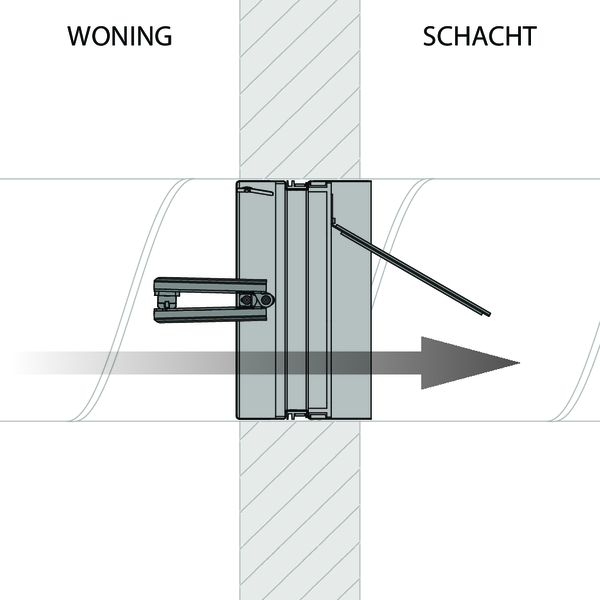

Installatierichting voor afvoer
3

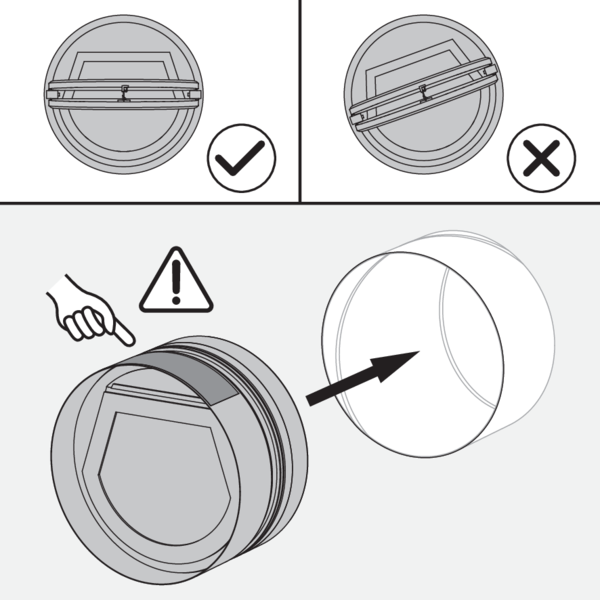

Oriëntatie van het product
4

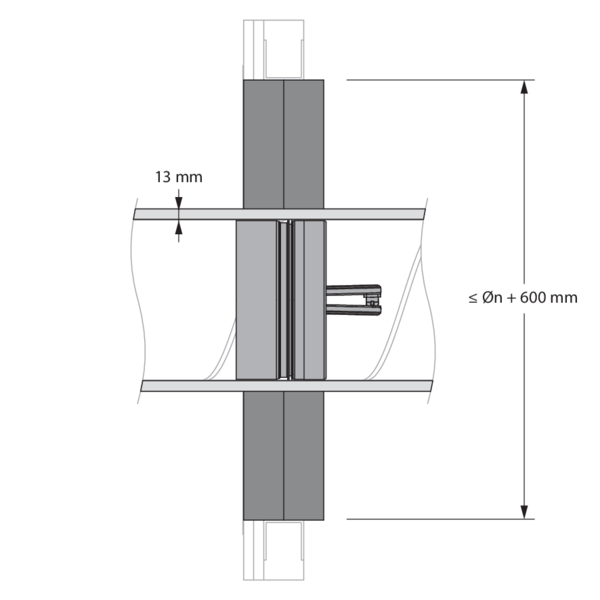

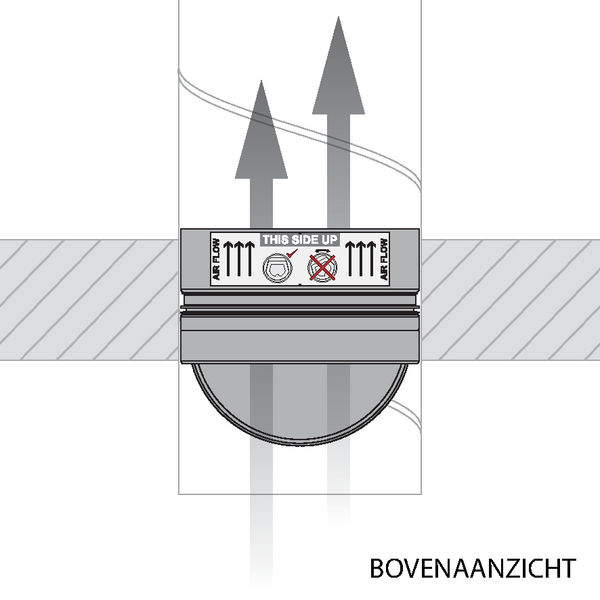

Bovenaanzicht
5

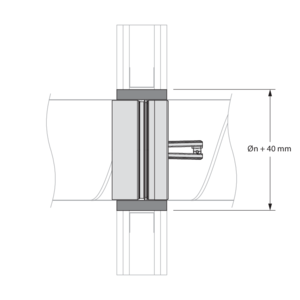

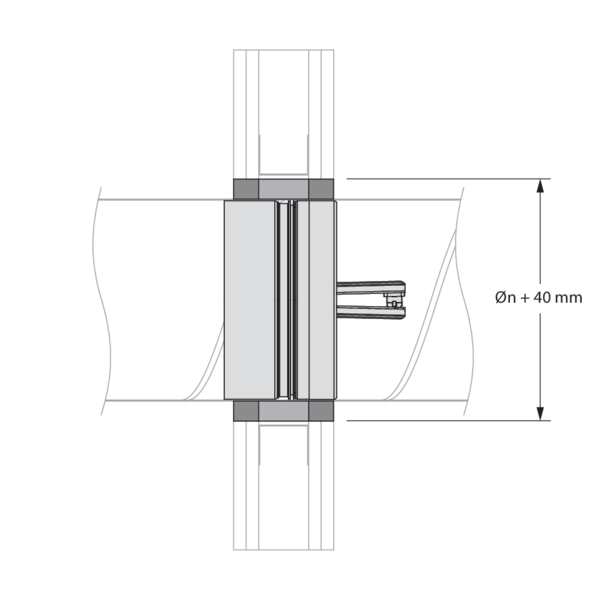

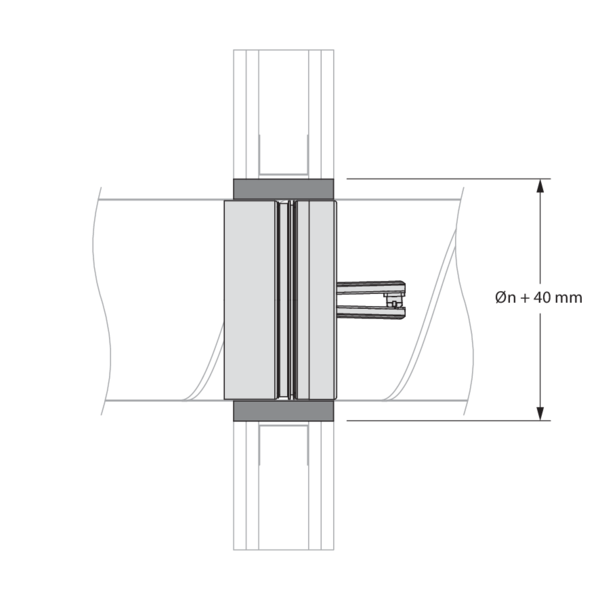

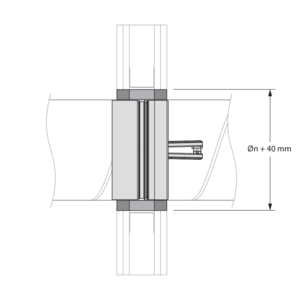

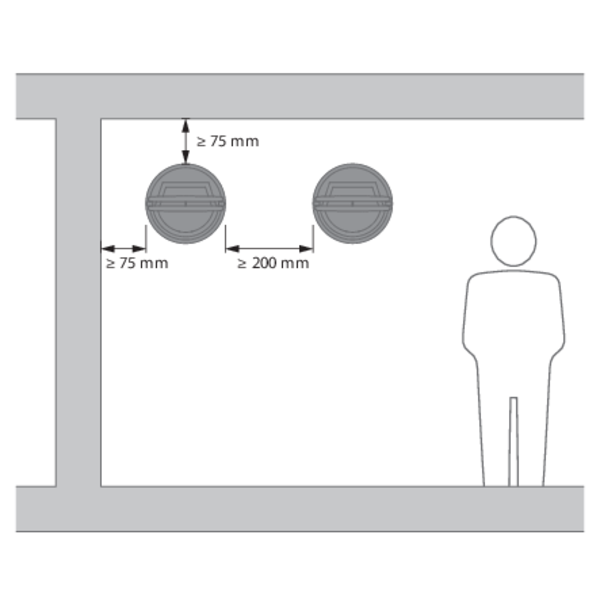

Plaatsing t.o.v. compartimentswand

Bediening: manuele opening

null
2
Ontgrendelen van de klepbladen door de twee blokkeerveren licht in te drukken.
3
Klepbladen vergrendelen door het smeltlood in de houder te klikken.

Bediening: manuele sluiting

null
2
Ontgrendel (sluit) de klepbladen door ze naar elkaar toe te duwen en het smeltlood zacht zijdelings te ontgrendelen.

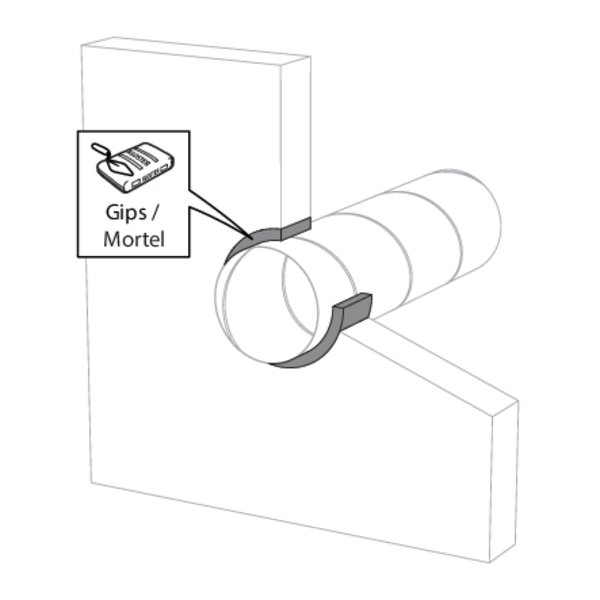

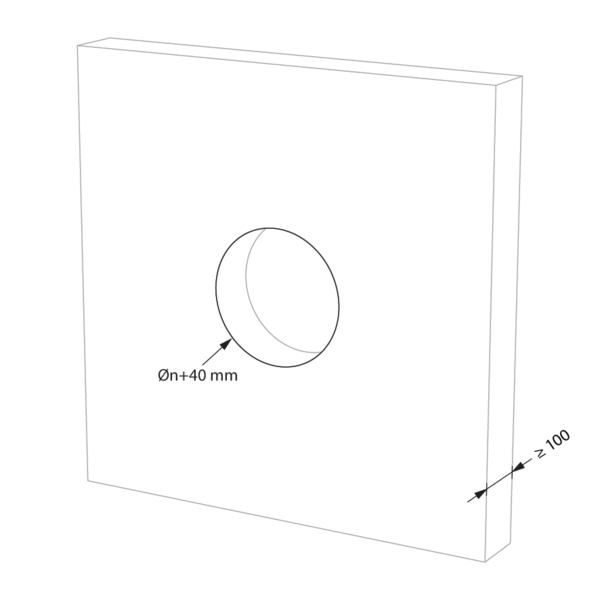

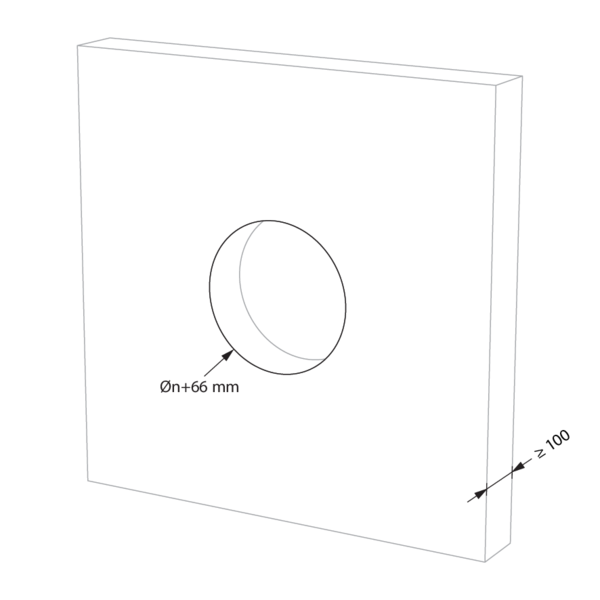

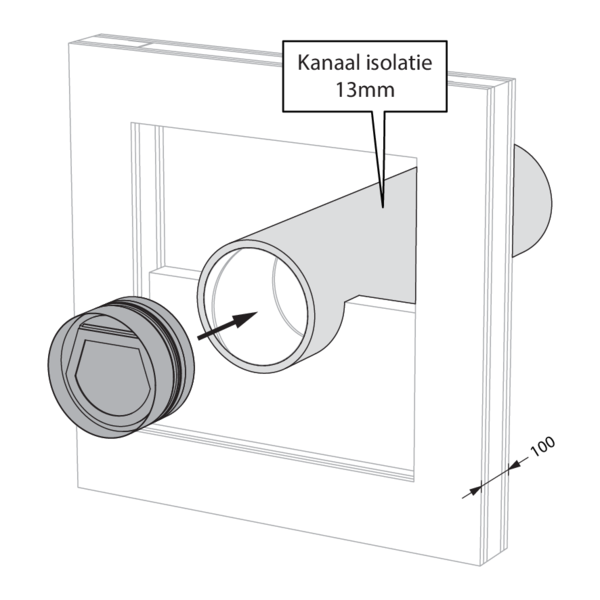

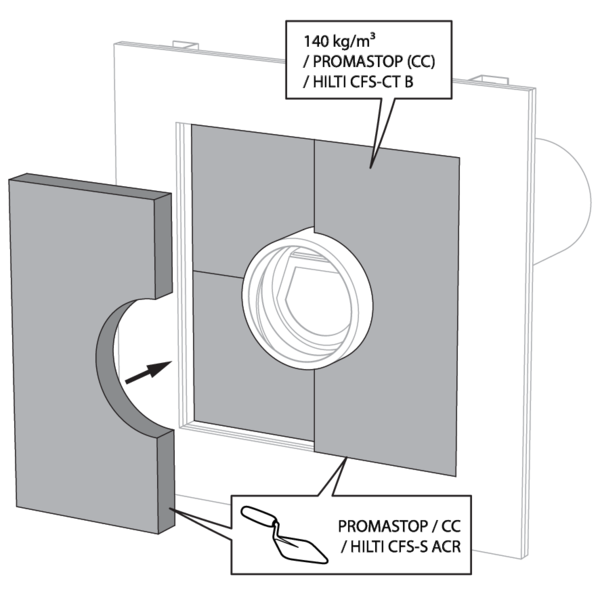

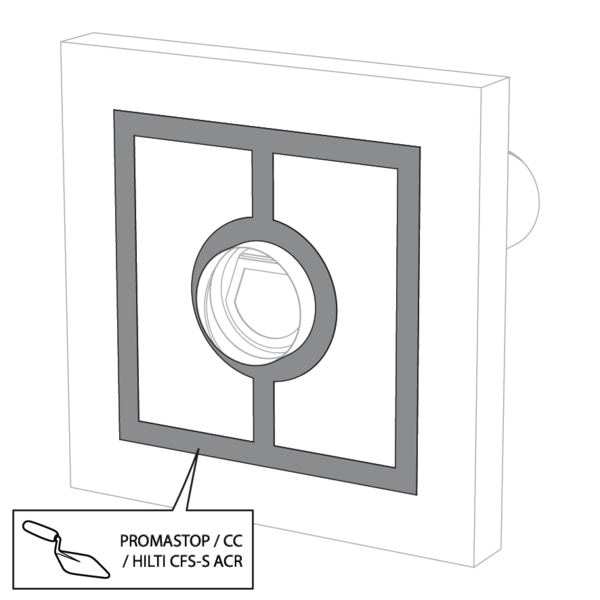

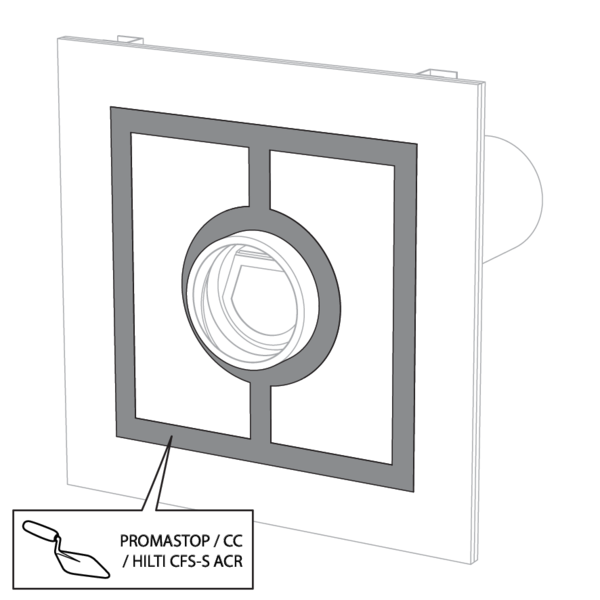

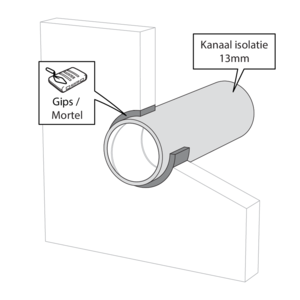

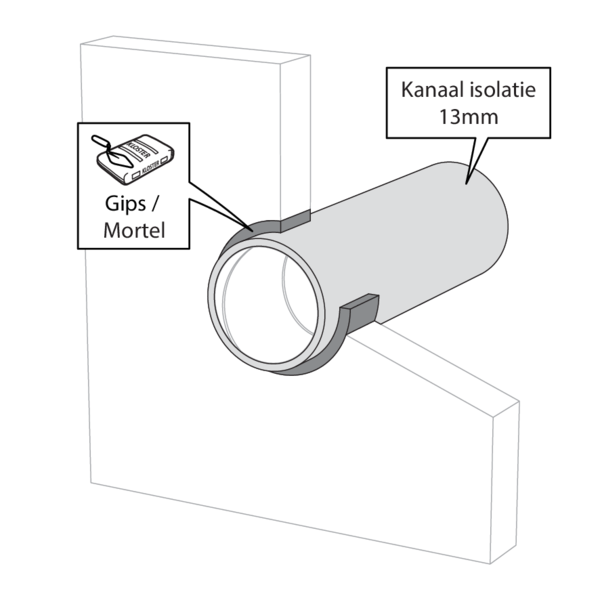

Plaatsing in massieve wand, afdichting met gips of mortel
